Zintra Acoustic Ceiling Shapes

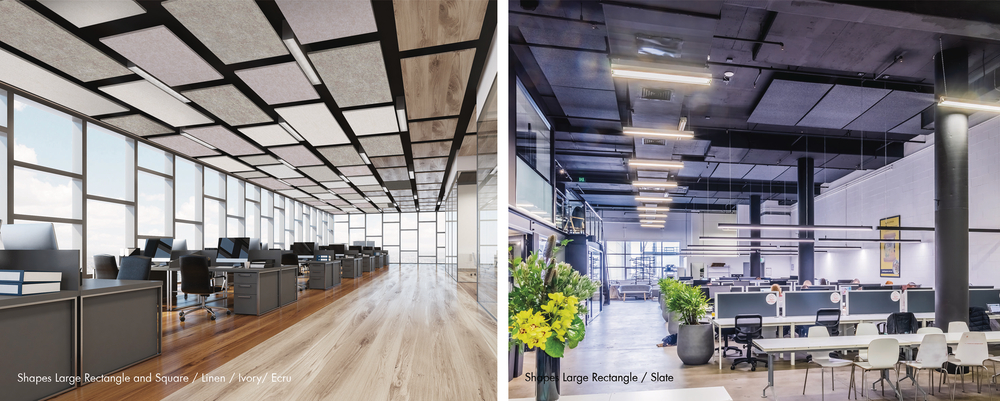

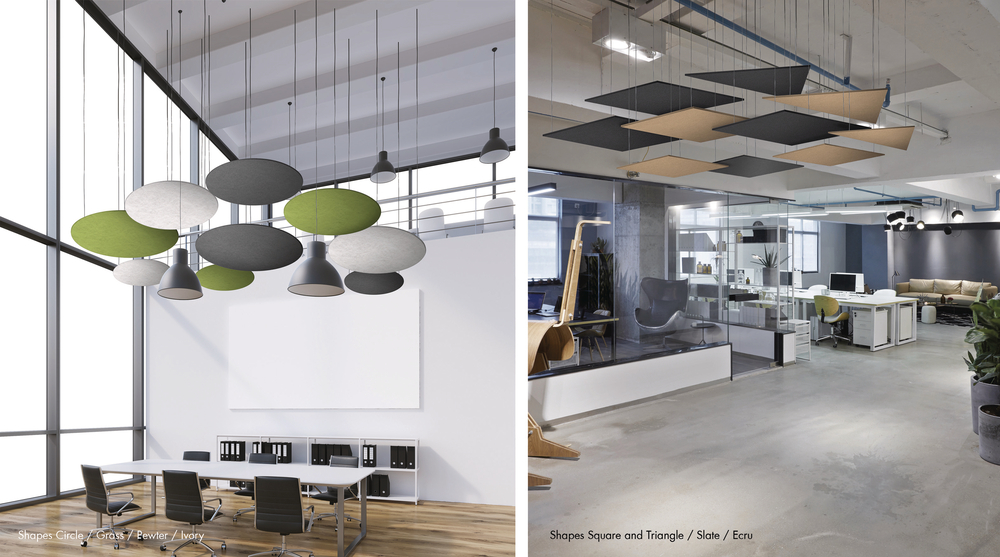

Zintra Ceiling Shapes use geometric forms to complement the traditional angles of a room. Working well on their own or as a group, Shapes can be hung to draw attention to a specific space or spread out to draw the eye over the entire length of the room.

ACOUSTIC CEILING SHAPES SPECIFICATION

• CONTENT   100% recyclable polyester, manufactured with 60% post consumer recycled PET bottles.

• ACOUSTIC RATING   Aw 0.30 to 0.95 depending on air gap / NRC 0.45 to 0.95 depending on air gap

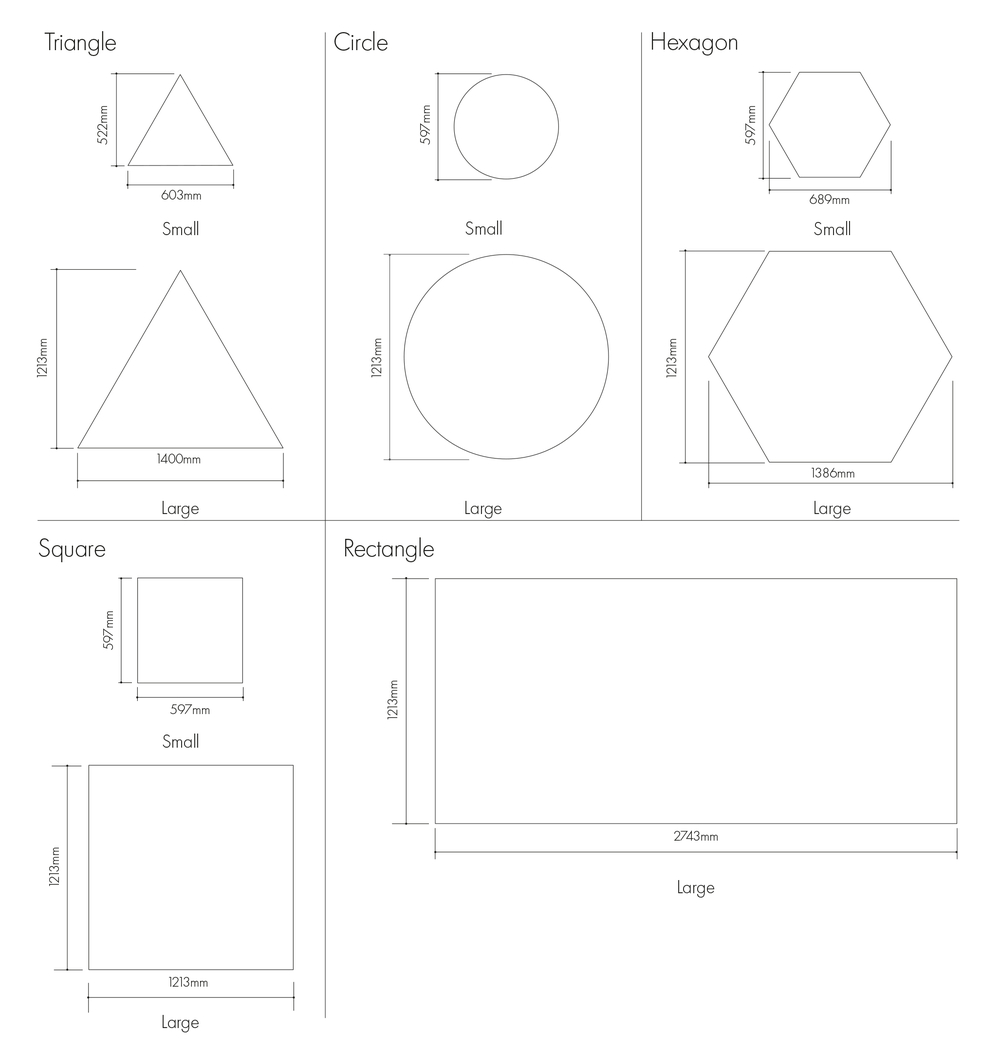

• SHAPE / THICKNESS   See diagrams above / 12mm thickness, or can be supplied as two layers 12mm+12mm thickness. Custom sizes on request.

• ​SURFACE FINISH   Matte

• WEIGHT   2.4kg / m2 (12mm thick).  4.8kg / m2 (24mm thick).

• FIRE RATING   Euroclass B-s2-d0

• COLOURS  30 standard plain colours and 4 timber effects. Digitally printed colours available too.

• APPLICATION   Indoor areas only.

• FABRICATION   Utility knife or CNC with oscillating knife.

• INSTALLATION   Hang with supplied cable.

• CARE   Vacuum.  Surfaces can be disinfected by spraying with diluted bleach solution. (4 teaspoons per 0.95 litres water).  Wipe off surface moisture.
